Replacement for Lesjöfors 9191 150N

$42.56

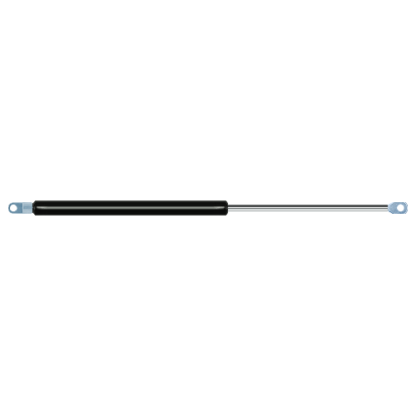

Replacement gas spring for the Lesjöfors 9191 150 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


  • View this gas spring in our configurator.

    Lesjöfors 9191
    AS24AR16_8

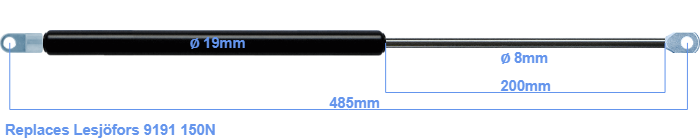

    The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke is 200 millimeter long. The total length of this replacement is exactly 485 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This gas spring (9191) has a force of 150 Newton. Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
