Replacement for APSOvib 12.2174.3020 200N
$47.39
Replacement gas spring for the APSOvib 12.2174.3020 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2174.3020.

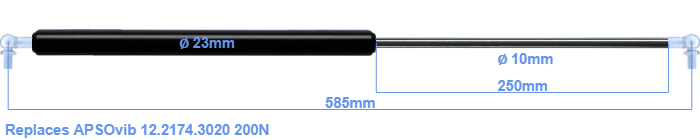

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The stroke is 250 millimeter long. In total, the length is 585 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This gas spring (12.2174.3020) has a force of 200 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
