Replacement for APSOvib 12.2174.5045 450N
$54.62
Replacement gas spring for the APSOvib 12.2174.5045 450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2174.5045.

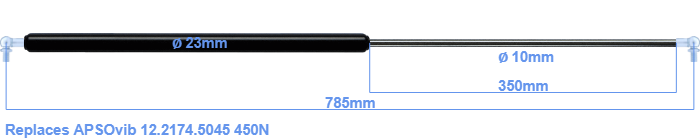

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The chrome part is called the rod. It has a length of 350 mm. The total length of this replacement is 785 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. This replacement gas spring (12.2174.5045) has a force of 450 Newton (N). This is not an official APSOvib gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions nearly equal.
