Replacement for Bansbach J2X3-42-250-583–0XX 80-1250N

$35.65




Replacement gas spring for the Bansbach J2X3-42-250-583--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach J2X3-42-250-583--0XX
    AR19

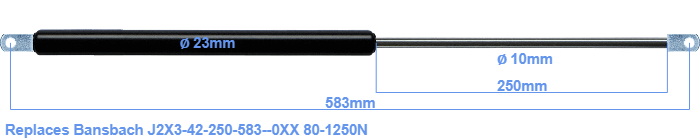

    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The stroke is 250 millimeter long. The total length of this gas strut is 583 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. This replacement gas spring (J2X3-42-250-583--0XX) has a force of 80-1250 Newton (N). This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost entirely equal.
