Replacement for Bansbach X3A1-42-200-483–0XX 80-1250N

$34.36




Replacement gas spring for the Bansbach X3A1-42-200-483--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 14mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    AR19

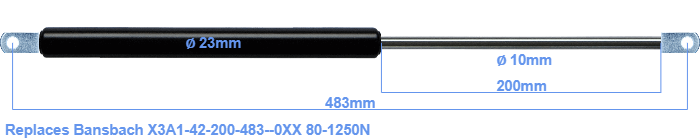

    The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The stroke is 200 millimeter long. The total length of this replacement is 483 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. The force of this replacement gas spring is 80-1250 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
