Replacement for Bansbach A2F2-42-300-684–0XX 80-1250N

$43.06




Replacement gas spring for the Bansbach A2F2-42-300-684--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Bansbach A2F2-42-300-684--0XX
    AR19

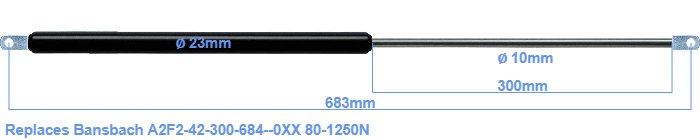

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke is 300 millimeter long. The total length of this replacement is exactly 683 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring (A2F2-42-300-684--0XX) has a force of 80-1250 Newton (N). This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
    Category:
    Replacement for Bansbach A2F2-42-300-684--0XX 80-1250N
