Replacement for Bansbach J2J2-42-300-683–0XX 80-1250N

$43.06




Replacement gas spring for the Bansbach J2J2-42-300-683--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Bansbach J2J2-42-300-683--0XX
    AR19

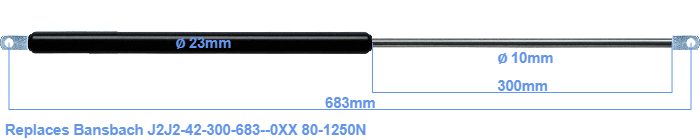

    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod totals 10 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this replacement is exactly 683 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring has a force of 80-1250 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
    Category:
    Replacement for Bansbach J2J2-42-300-683--0XX 80-1250N
