Replacement for Bansbach J2X3-42-350-783–0XX 80-1250N

$48.80




Replacement gas spring for the Bansbach J2X3-42-350-783--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Bansbach J2X3-42-350-783--0XX
    AR19

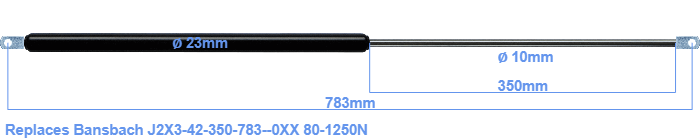

    The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The chrome part is called the rod. It has a length of 350 mm. The total length of this gas strut is 783 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. This replacement gas spring has a force of 80-1250 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions almost entirely equal.
    Category:
    Replacement for Bansbach J2X3-42-350-783--0XX 80-1250N
