Replacement for Bansbach A1N1-50-250-585–0XX 50-800N

$43.91



Replacement gas spring for the Bansbach A1N1-50-250-585--0XX 50-800 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 5mm instead of 10mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

View this gas spring in our configurator.

Force

Choose an option50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.460 Newton | 103.4 lbs.480 Newton | 107.9 lbs.500 Newton | 112.4 lbs.520 Newton | 116.9 lbs.540 Newton | 121.4 lbs.550 Newton | 123.6 lbs.560 Newton | 125.9 lbs.580 Newton | 130.4 lbs.600 Newton | 134.9 lbs.620 Newton | 139.4 lbs.640 Newton | 143.9 lbs.650 Newton | 146.1 lbs.660 Newton | 148.4 lbs.680 Newton | 152.9 lbs.700 Newton | 157.4 lbs.720 Newton | 161.9 lbs.740 Newton | 166.4 lbs.750 Newton | 168.6 lbs.760 Newton | 170.9 lbs.780 Newton | 175.4 lbs.800 Newton | 179.8 lbs.Clear

Replacement for Bansbach A1N1-50-250-585--0XX 50-800N quantity

Add to basket

This gas spring is also known as Winco Easylift A1N1-50-250-585, A1N1 F50-250-585.

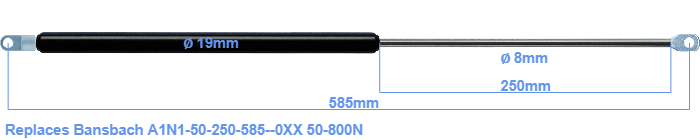

This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The rod (the chrome part) is 250 mm long. The total length of this gas strut is 585 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement is 50-800 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This a gas spring with the brand HAHN. The force (50-800 N) and dimensions are nearly identical to the original.
