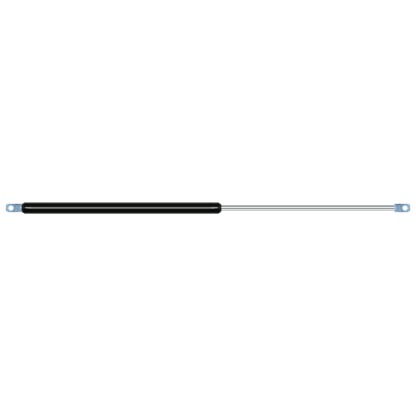

Replacement for Bansbach K2X3-40-300-684–0XX 50-800N

$45.06



Out of stock until April 26th


Replacement gas spring for the Bansbach K2X3-40-300-684--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.


    • View this gas spring in our configurator.

    Bansbach K2X3-40-300-684--0XX
    AR19


    This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The rod (the chrome part) is 300 mm long. In total, the length is 683 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring (K2X3-40-300-684--0XX) has a force of 50-800 Newton (N). This is not an original gas spring from Bansbach, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost equal.
    Category:
    Replacement for Bansbach K2X3-40-300-684--0XX 50-800N
