Replacement for APSOvib 12.2174.4045 450N
$48.88
Replacement gas spring for the APSOvib 12.2174.4045 450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2174.4045.

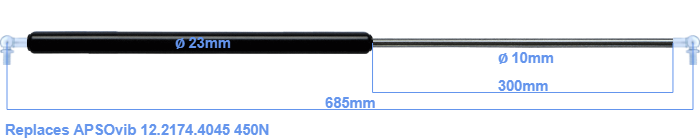

The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The stroke of the gas spring is 300 millimeter. The total length of this replacement gas spring is 685 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring has a force of 450 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
