Replacement for APSOvib 12.2174.3045 450N
$47.39
Replacement gas spring for the APSOvib 12.2174.3045 450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2174.3045.

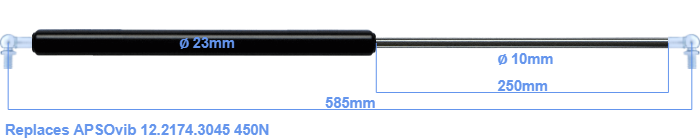

The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement gas spring is 585 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement gas spring is 450 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
