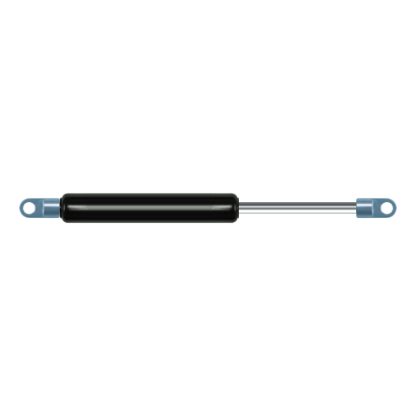

Replacement for APSOvib 12.2161.2040 400N

$33.10




Replacement gas spring for the APSOvib 12.2161.2040 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.
This gas spring is also known as AP12.2161.2040.
APSOvib 12.2161.2040
AX16

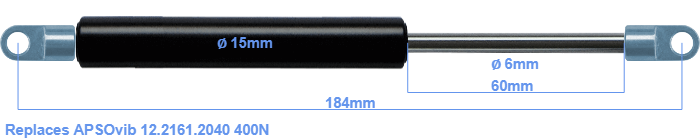

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The chrome part is called the rod. It has a length of 60 mm. The total length of this replacement gas spring is 184 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This replacement gas spring is a HAHN gas spring. The force (400 N) and dimensions are almost entirely identical to the original.
