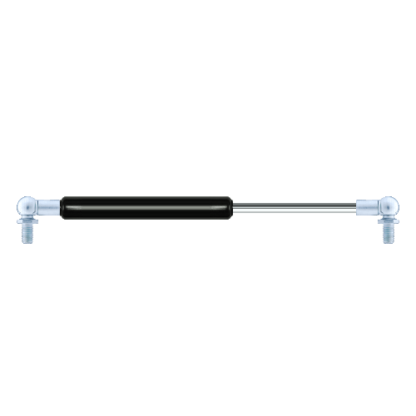

Replacement for APSOvib 12.2171.3020 200N
Replacement gas spring for the APSOvib 12.2171.3020 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn. This gas spring is also known as AP12.2171.3020.

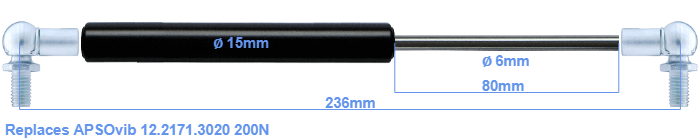

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement gas spring is 236 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. The force of this replacement gas spring is 200 Newton. Attention: this is not an official APSOvib gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
