Replacement for APSOvib 12.2161.2020 200N

$33.10




Replacement gas spring for the APSOvib 12.2161.2020 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.
This gas spring is also known as AP12.2161.2020.
APSOvib 12.2161.2020
AX16

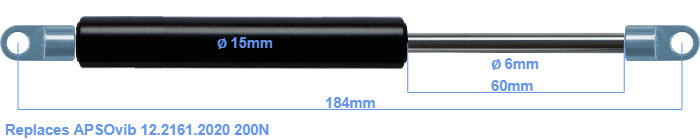

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 60 millimeter. In total, the length is 184 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 152 mm. The force of this replacement gas spring is 200 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
