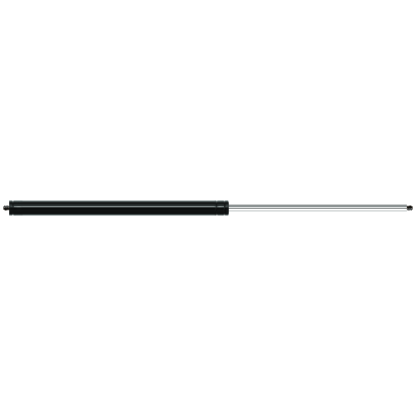

Replacement for Vapsint AYS GD5 GD5 1120 500 300-5000N

$218.83




Replacement gas spring for the Vapsint AYS GD5 GD5 1120 500 300-5000 Newton. Thread: M14. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 4mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Vapsint AYS GD5 GD5 1120 500


The diameter of the black cylinder of this gas spring is 40 millimeter. The diameter of the rod is 20 millimeter. The stroke (the retracting part) has a length of 500 mm. In total, the length is 1116 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 1116 mm long (thread to thread). This gas spring (AYS GD5 GD5 1120 500) has a force of 300-5000 Newton. This is not an official Vapsint gas spring, but a so called replacement. This is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
