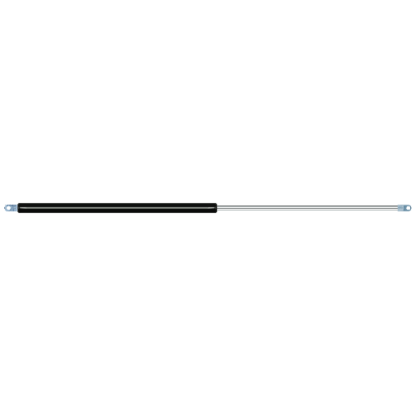

Replacement for Titgemeyer GETO Lift 605 099 950N

$45.58




Replacement gas spring for the Titgemeyer GETO Lift 605 099 950 Newton. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

  • Titgemeyer GETO Lift 605 099
    AR19AS24


    The bore of the house of this replacement gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke is 400 millimeter long. The total length of this gas strut is 888 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. This gas spring (605 099) has a force of 950 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions nearly equal.
