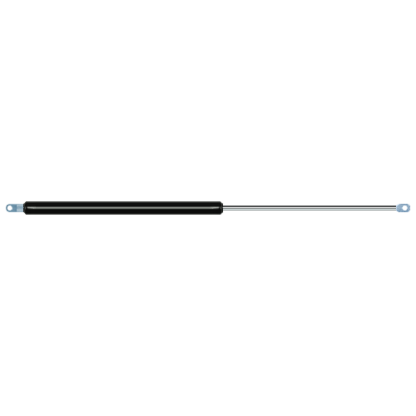

Replacement for Titgemeyer GETO Lift 605 087 750N

$43.28



Replacement gas spring for the Titgemeyer GETO Lift 605 087 750 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 087 750N quantity

Add to basket

This gas spring is also known as 605087000.

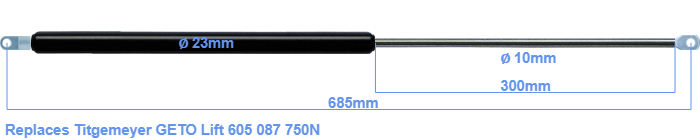

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke (the retracting part) has a length of 300 mm. In total, the length is 685 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. The force of this replacement gas spring is 750 Newton. This is not an official Titgemeyer GETO Lift gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
