Replacement for Titgemeyer GETO Lift 605 047 750N

$40.29



Replacement gas spring for the Titgemeyer GETO Lift 605 047 750 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Titgemeyer GETO Lift 605 047 750N quantity

Add to basket

This gas spring is also known as 605047000.

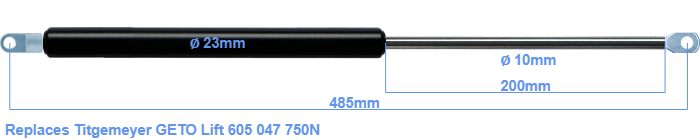

This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The rod (the chrome part) is 200 mm long. The total length of this replacement gas spring is 485 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement gas spring is 750 Newton. This is not an official Titgemeyer GETO Lift gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The force (750 N) and dimensions are almost identical to the original.
