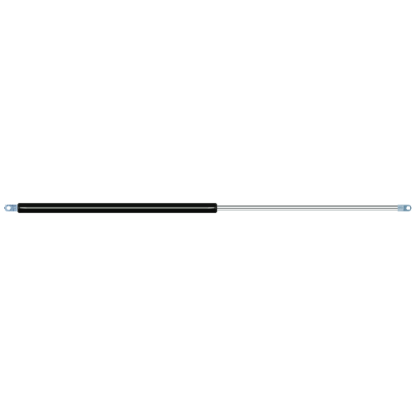

Replacement for Titgemeyer GETO Lift 605 097 750N

$45.58




Replacement gas spring for the Titgemeyer GETO Lift 605 097 750 Newton. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

  • Titgemeyer GETO Lift 605 097
    AR19AS24


    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 400 mm. The total length of this replacement gas spring is 888 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 845 mm. The force of this replacement is 750 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
