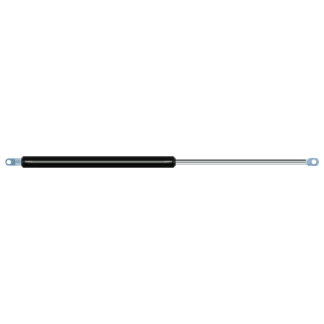

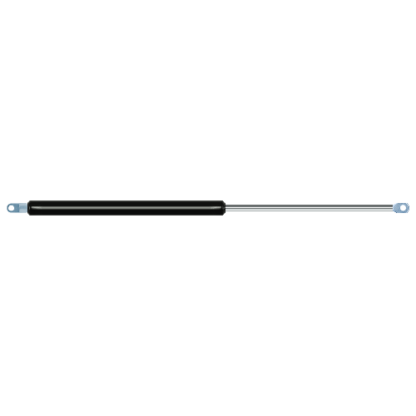

Replacement for Titgemeyer GETO Lift 605 069 1000N

$35.83




Replacement gas spring for the Titgemeyer GETO Lift 605 069 1000 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

  • Titgemeyer GETO Lift 605 069
    AS24AR16_8


    The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is exactly 585 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement gas spring is 1000 Newton. This is not an original gas spring produced by Titgemeyer GETO Lift, but it can replace a Titgemeyer GETO Lift gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions almost equal.
