Replacement for Titgemeyer GETO Lift 605 023 250N

$38.78




Replacement gas spring for the Titgemeyer GETO Lift 605 023 250 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 605023000.
    Titgemeyer GETO Lift 605 023
    AS24AR16_8

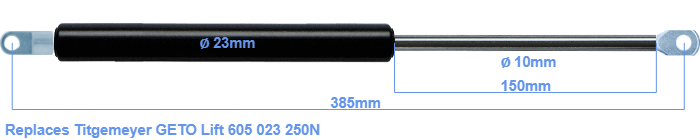

    The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The stroke is 150 millimeter long. The total length of this replacement gas spring is 385 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). The force of this replacement is 250 Newton. This is not an original gas spring from Titgemeyer GETO Lift, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
