Replacement for Titgemeyer GETO Lift 604 039 1500N



Replacement gas spring for the Titgemeyer GETO Lift 604 039 1500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.

Titgemeyer GETO Lift 604 039

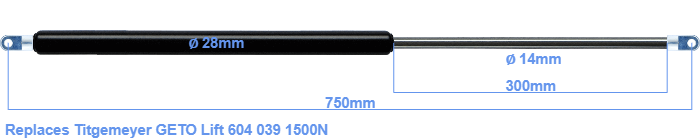

The diameter of the black cylinder of this gas spring is 28 millimeter. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 300 mm. The total length of this gas strut is 750 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 696 millimeter. This replacement gas spring has a force of 1500 Newton. This gas spring can replace a Titgemeyer GETO Lift gas spring, but is not an orignal Titgemeyer GETO Lift one. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
