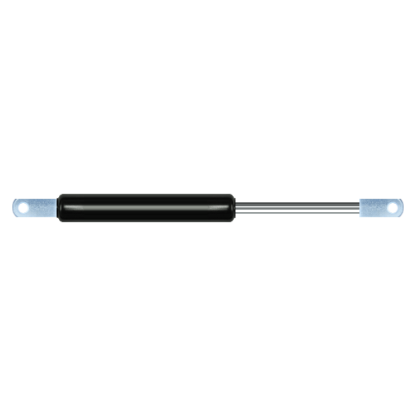

Replacement for Titgemeyer GETO Lift 603 990 250N

$31.12




Replacement gas spring for the Titgemeyer GETO Lift 603 990 250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

  • Titgemeyer GETO Lift 603 990
    AR27


    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement gas spring is 299 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. This replacement gas spring has a force of 250 Newton. Attention: this is not an official Titgemeyer GETO Lift gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
