Replacement for Suspa Liftline 01625009 30-450N

$33.10



Replacement gas spring for the Suspa Liftline 01625009 30-450 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Force

Choose an option30 Newton | 6.7 lbs.40 Newton | 9.0 lbs.50 Newton | 11.2 lbs.60 Newton | 13.5 lbs.80 Newton | 18.0 lbs.100 Newton | 22.5 lbs.120 Newton | 27.0 lbs.140 Newton | 31.5 lbs.150 Newton | 33.7 lbs.160 Newton | 36.0 lbs.180 Newton | 40.5 lbs.200 Newton | 45.0 lbs.220 Newton | 49.5 lbs.240 Newton | 54.0 lbs.250 Newton | 56.2 lbs.260 Newton | 58.5 lbs.280 Newton | 62.9 lbs.300 Newton | 67.4 lbs.320 Newton | 71.9 lbs.340 Newton | 76.4 lbs.350 Newton | 78.7 lbs.360 Newton | 80.9 lbs.380 Newton | 85.4 lbs.400 Newton | 89.9 lbs.420 Newton | 94.4 lbs.440 Newton | 98.9 lbs.450 Newton | 101.2 lbs.Clear

Replacement for Suspa Liftline 01625009 30-450N quantity

Add to basket

This gas spring is also known as 16-1 016 25009, 16-1-96-67-A17-B17.

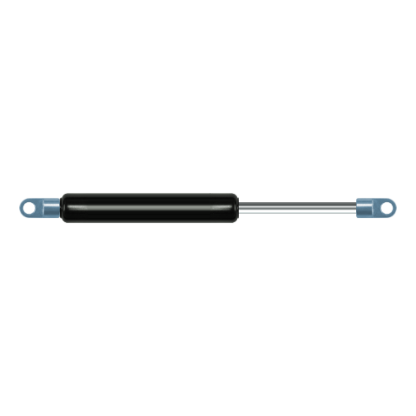

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is exactly 184 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). This gas spring (01625009) has a force of 30-450 Newton. This is not an original gas spring from Suspa Liftline, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions almost entirely equal.
