Replacement for Suspa Liftline 01611299 200N

$28.37




Replacement gas spring for the Suspa Liftline 01611299 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 16-1 016 11299.
Suspa Liftline 01611299
AX16

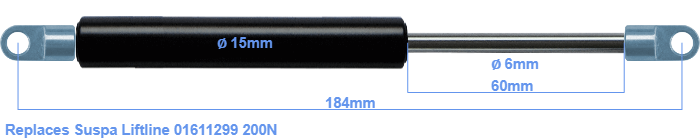

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The rod (the chrome part) is 60 mm long. The total length of this replacement gas spring is 184 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). The force of this replacement is 200 Newton. This gas spring can replace a Suspa Liftline gas spring, but is not an orignal Suspa Liftline one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are close to equal.
