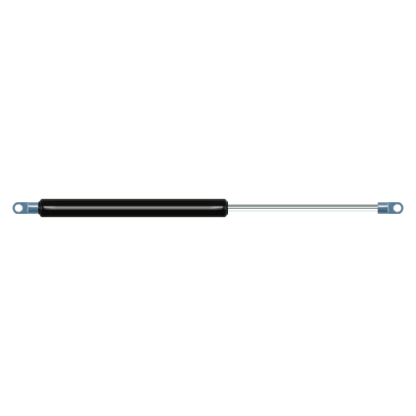

Replacement for Stobo 4100055- 400N

$28.94




Replacement gas spring for the Stobo 4100055- 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100055-
AX16

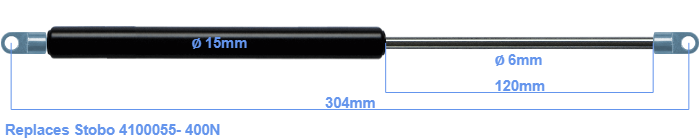

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 120 mm long. The total length of this replacement is 304 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. This gas spring can replace a Stobo gas spring, but is not an orignal Stobo one. This a gas spring with the brand Stabilus Industry Line. The force (400 N) and dimensions are almost entirely identical to the original.
