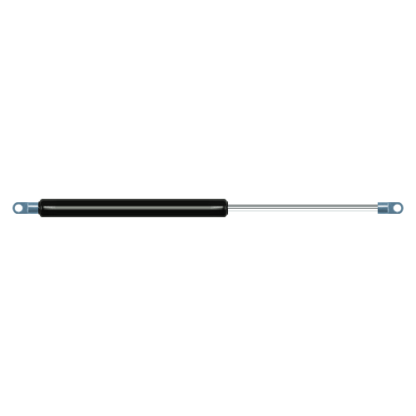

Replacement for APSOvib 12.2161.5031 310N
Replacement gas spring for the APSOvib 12.2161.5031 310 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as AP12.2161.5031.
The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 120 mm long. The total length of this gas strut is 304 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement gas spring is 310 Newton. This is not an original gas spring from APSOvib, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. The force (310 N) and dimensions are close to identical to the original.
