Replacement for Stobo 4100023- 200N

$33.30




Replacement gas spring for the Stobo 4100023- 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Stobo 4100023-
AX16

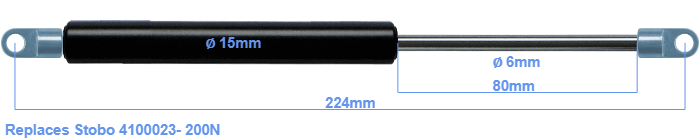

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The rod (the chrome part) is 80 mm long. The total length of this replacement is 224 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. This gas spring (4100023-) has a force of 200 Newton. This gas spring can replace a Stobo gas spring, but is not an orignal Stobo one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
