Replacement for Stobo 4100013- 200N

$33.10




Replacement gas spring for the Stobo 4100013- 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

View this gas spring in our configurator.

Stobo 4100013-
AX16

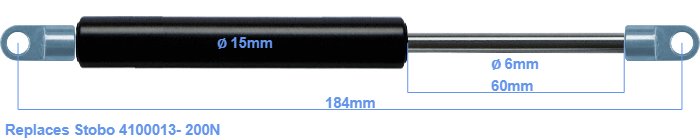

The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 60 mm. The total length of this replacement is exactly 184 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. This replacement gas spring (4100013-) has a force of 200 Newton (N). This gas spring can replace a Stobo gas spring, but is not an orignal Stobo one. This a gas spring with the brand HAHN. Nevertheless, the dimensions and force are almost entirely equal.
