Replacement for Stobo 4100155- 200N

$37.47




Replacement gas spring for the Stobo 4100155- 200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.

Stobo 4100155-
AR19

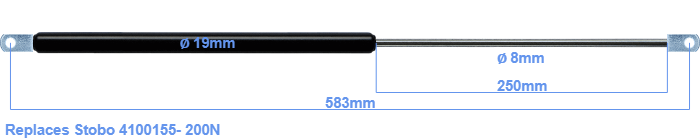

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke is 250 millimeter long. The total length of this replacement is 583 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. The force of this replacement is 200 Newton. This is not an original gas spring from Stobo, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost entirely equal.
