Replacement for Stobo 4100012- 100N

$28.37




Replacement gas spring for the Stobo 4100012- 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100012-
AX16

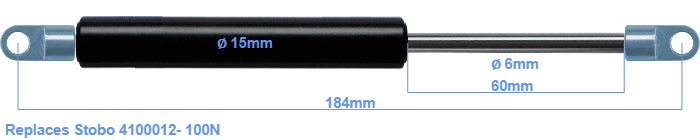

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The rod (the chrome part) is 60 mm long. The total length of this replacement is exactly 184 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 152 millimeter. The force of this replacement gas spring is 100 Newton. This is not an original gas spring produced by Stobo, but it can replace a Stobo gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
