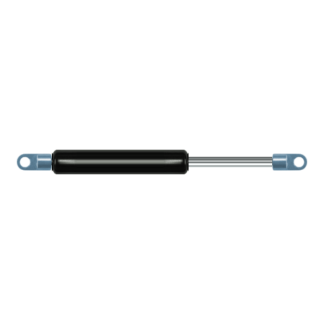

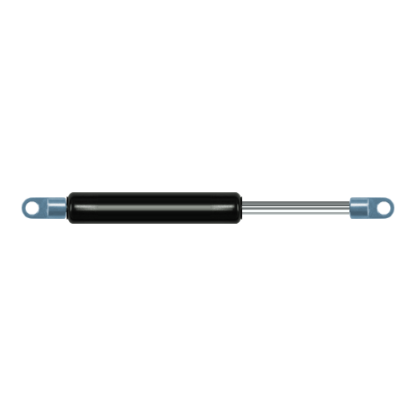

Replacement for Stabilus Lift-O-Mat 9282NU 0350N
Replacement gas spring for the Stabilus Lift-O-Mat 9282NU 0350N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA9282NU.
This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 50 mm. In total, the length is 164 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 132 mm. This replacement gas spring has a force of 350 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
