Replacement for Stabilus Lift-O-Mat 7353NP 0175N
$36.36
Replacement gas spring for the Stabilus Lift-O-Mat 7353NP 0175N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA7353NP.

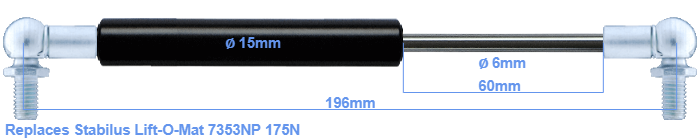

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke is 60 millimeter long. The total length of this gas strut is 196 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 152 mm long (thread to thread). This replacement gas spring (7353NP) has a force of 175 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
