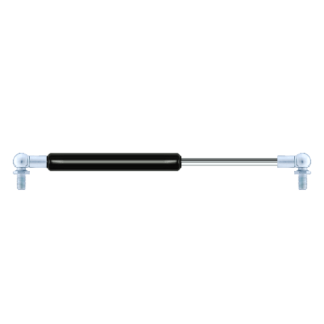

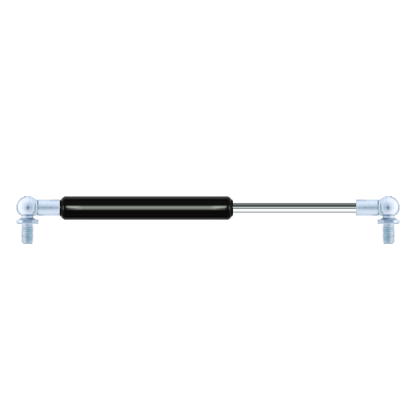

Replacement for Stabilus Lift-O-Mat 1395KO 0150N

$31.35




Replacement gas spring for the Stabilus Lift-O-Mat 1395KO 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA1395KO.
Stabilus Lift-O-Mat 1395KO
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke of the gas spring is 80 millimeter. The total length of this replacement is exactly 236 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. This gas spring (1395KO) has a force of 150 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
