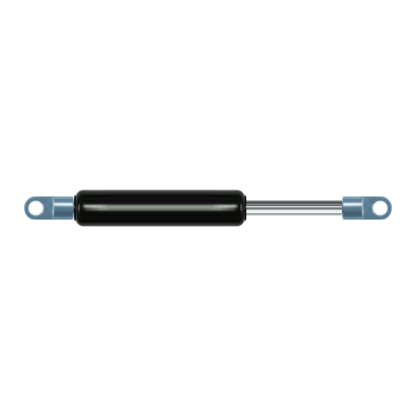

Replacement for Stabilus Lift-O-Mat 5156VZ 0060N
Replacement gas spring for the Stabilus Lift-O-Mat 5156VZ 0060N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA5156VZ.

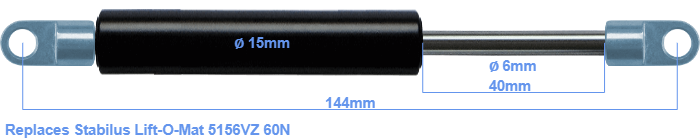

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The stroke is 40 millimeter long. The total length of this gas strut is 144 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). This replacement gas spring (5156VZ) has a force of 60 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the force and dimensions almost entirely equal.
