Replacement for Stabilus Lift-O-Mat 2682NV 0600N
Replacement gas spring for the Stabilus Lift-O-Mat 2682NV 0600N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm. This gas spring is also known as CA2682NV.

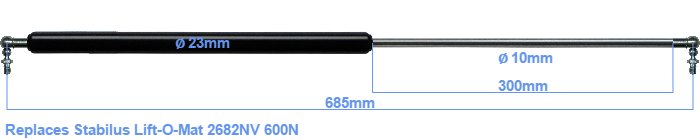

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The rod (the chrome part) is 300 mm long. The total length of this replacement is 685 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring (2682NV) has a force of 600 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (600 N) and dimensions are close to identical to the original.
