Replacement for Stabilus Lift-O-Mat 2845SX 0400N
Replacement gas spring for the Stabilus Lift-O-Mat 2845SX 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn. This gas spring is also known as CA2845SX.

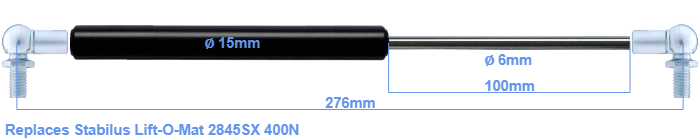

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement is exactly 276 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 232 mm long (thread to thread). This replacement gas spring (2845SX) has a force of 400 Newton (N). This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
