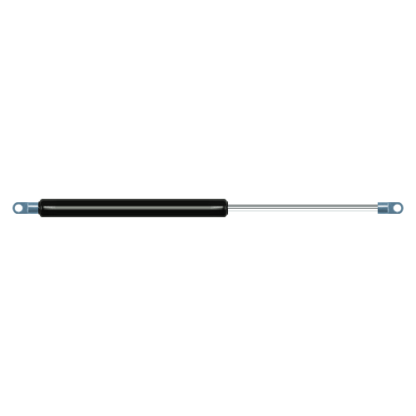

Replacement for Stabilus Lift-O-Mat 366900 0275N
Replacement gas spring for the Stabilus Lift-O-Mat 366900 0275N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA366900.

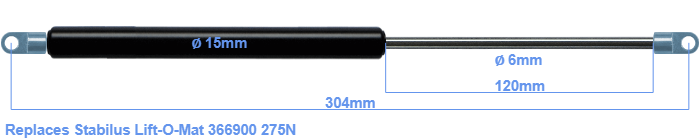

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The chrome part is called the rod. It has a length of 120 mm. The total length of this gas strut is 304 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 272 mm. The force of this replacement gas spring is 275 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
