Replacement for Stabilus Lift-O-Mat 2046LV 1900N

$46.36



Replacement gas spring for the Stabilus Lift-O-Mat 2046LV 1900N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Replacement for Stabilus Lift-O-Mat 2046LV 1900N quantity

Add to basket

This gas spring is also known as CA2046LV.

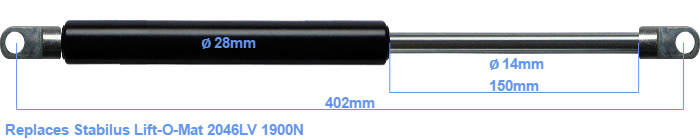

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The rod (the chrome part) is 150 mm long. In total, the length is 402 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). The force of this replacement gas spring is 1900 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are nearly equal.
