Replacement for Stabilus Lift-O-Mat 291722 0480N

$36.49




Replacement gas spring for the Stabilus Lift-O-Mat 291722 0480N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 5mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 5mm.
  • This replacement gas spring is 4mm shorter than the original gas spring. In general, this will not cause any problems.
  • This gas spring is also known as CA291722.
    Stabilus Lift-O-Mat 291722
    AR27AS24

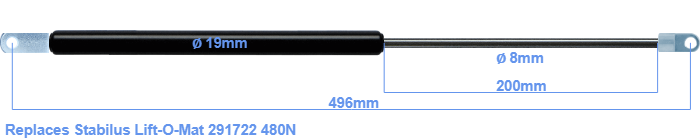

    The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 200 mm. The total length of this gas strut is 496 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 480 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (480 N) and dimensions are nearly identical to the original.
