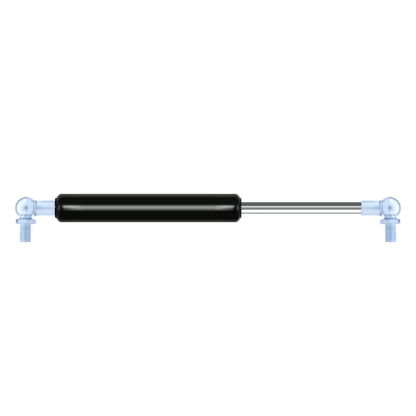

Replacement for Stabilus Lift-O-Mat 1624FG 0500N



Replacement gas spring for the Stabilus Lift-O-Mat 1624FG 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA1624FG. This gas spring is also used in Deutz-Fahr AgroTron 4.70, Deutz-Fahr AgroTron 6.45.
Stabilus Lift-O-Mat 1624FG
elbow ball removal

The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke is 80 millimeter long. In total, the length is 245 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 205 mm long (thread to thread). The force of this replacement gas spring is 500 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
