Replacement for Stabilus Lift-O-Mat 752762 0150N
$42.59
Replacement gas spring for the Stabilus Lift-O-Mat 752762 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA752762.

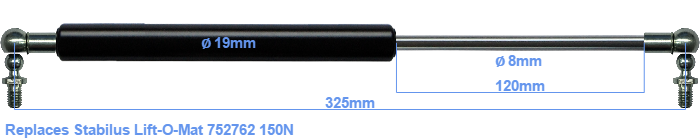

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this replacement gas spring is 325 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 285 millimeter. This replacement gas spring (752762) has a force of 150 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The force (150 N) and dimensions are identical to the original.
