Replacement for Stabilus Lift-O-Mat 1439EU 0250N

$46.83




Replacement gas spring for the Stabilus Lift-O-Mat 1439EU 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
This gas spring is also known as CA1439EU.
Stabilus Lift-O-Mat 1439EU
WG20
elbow ball removal

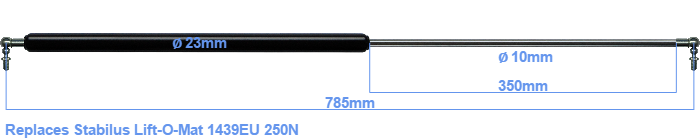

The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The rod (the chrome part) is 350 mm long. The total length of this replacement gas spring is 785 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 745 mm. This gas spring (1439EU) has a force of 250 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are close to equal.
