Replacement for Stabilus Lift-O-Mat 2653NH 0150N

$61.85




Replacement gas spring for the Stabilus Lift-O-Mat 2653NH 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA2653NH.
Stabilus Lift-O-Mat 2653NH
WG20
elbow ball removal

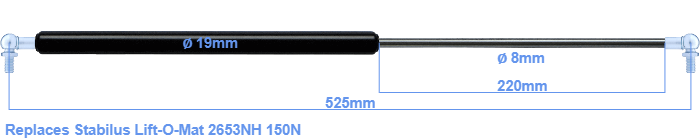

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 220 millimeter. The total length of this gas strut is 525 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement is 150 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are equal.
