Replacement for Stabilus Lift-O-Mat 1417EP 0200N
$40.89
Replacement gas spring for the Stabilus Lift-O-Mat 1417EP 0200N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA1417EP.

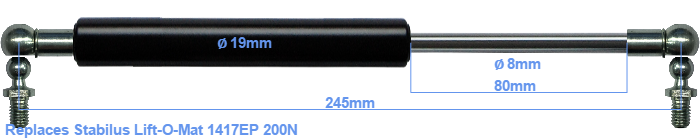

The diameter of the black cylinder of this gas spring is 19 millimeter. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is 245 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 205 mm. The force of this replacement is 200 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, the dimensions and force are equal.
