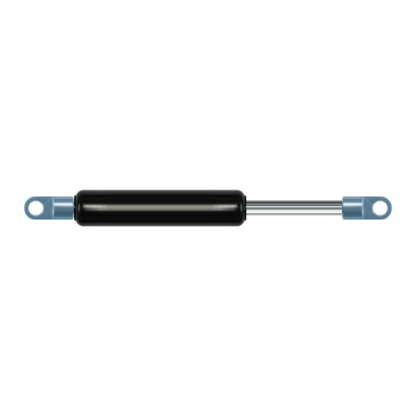

Replacement for Stabilus Lift-O-Mat 192813 0200N
Replacement gas spring for the Stabilus Lift-O-Mat 192813 0200N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA192813.
The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 40 millimeter long. The total length of this replacement is exactly 144 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. This gas spring (192813) has a force of 200 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (200 N) and dimensions are almost identical to the original.
