Replacement for Stabilus Lift-O-Mat 095397 0350N
$48.88
Replacement gas spring for the Stabilus Lift-O-Mat 095397 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA095397.

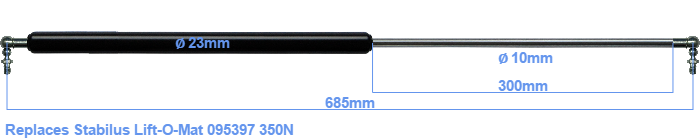

The diameter of the black cylinder of this gas spring is 23 millimeter. The rod has a diameter of 10 mm. The stroke of the gas spring is 300 millimeter. In total, the length is 685 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). The force of this replacement is 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
