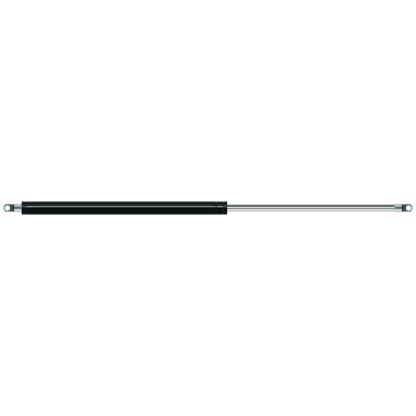

Replacement for Stabilus Lift-O-Mat 086991 2800N



Replacement gas spring for the Stabilus Lift-O-Mat 086991 2800N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm.
This gas spring is also known as CA086991.
Stabilus Lift-O-Mat 086991

This gas spring has a cylinder diameter of 40 mm. The diameter of the rod is 20 millimeter. The stroke (the retracting part) has a length of 500 mm. The total length of this replacement is 1200 millimeter. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 1116 mm long (thread to thread). This replacement gas spring (086991) has a force of 2800 Newton (N). This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
