Replacement for Stabilus Lift-O-Mat 4857DY 0350N
$44.38
Replacement gas spring for the Stabilus Lift-O-Mat 4857DY 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA4857DY.

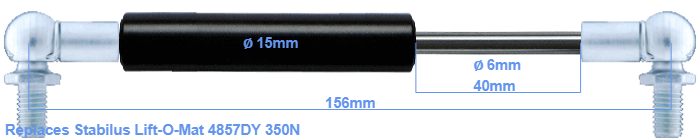

This gas spring has a cylinder diameter of 15 mm. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 40 mm. The total length of this replacement gas spring is 156 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. The force of this replacement is 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
